SCS2365

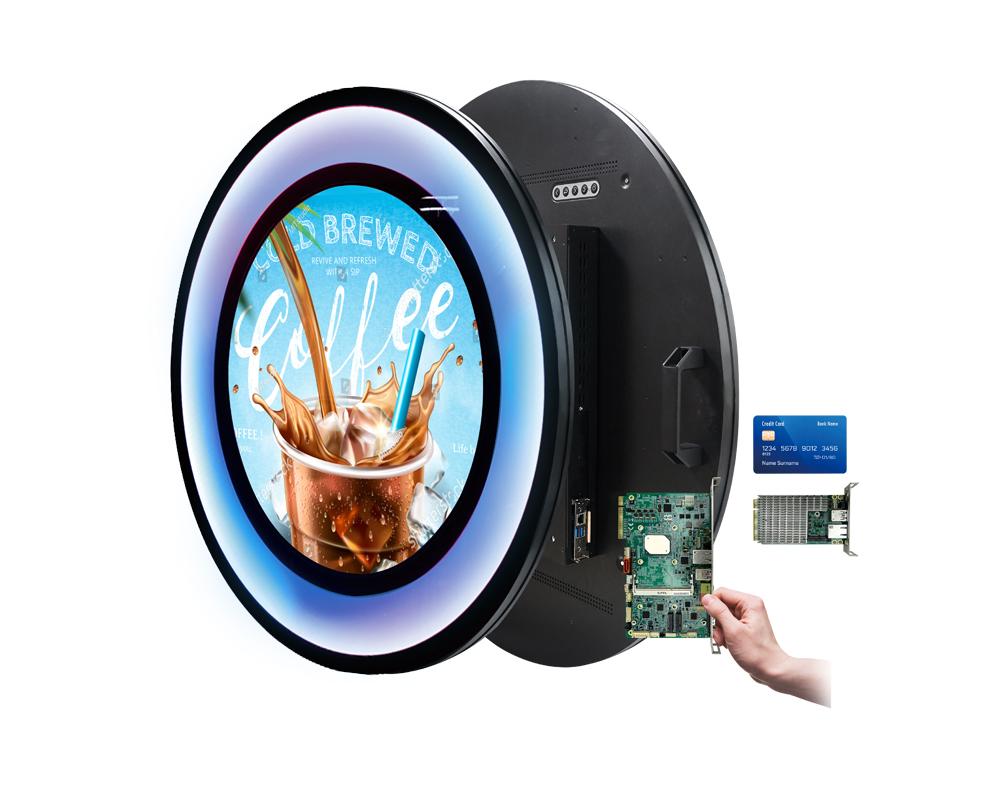

23.6” TFT LCD, 1000 nits, 1920x1920, Circle SDM Solutions- 23.6" Circle Display
- High Brightness 1000nits
- Aspect Ratio 1:1
- Programmable Pattern RGB
- Circle Lighting
- Support Intel® SDM-S/SDM-L
-
Model Name SCS2365 Description 23.6” TFT LCD,1000nits,1920x1920 Circle SDM Solutions Size 23.6” Display Area (mm) 596.16(H) x 596.16(V) Brightness 1000 cd/m² Resolution 1920x1920 Aspect Ratio 1:1 Contrast Ratio 600:1 Pixel Pitch (mm) 0.3105(H) x 0.3105(V) Pixel Pre Inch (PPI) 82 Viewing Angle 178°(H),178°(V) Color Saturation (NTSC) 77% Display Colors 16.7M Response Time (Typical) 8ms SDM Slot SDM-S/SDM-L Input Power AC100~240V Power Consumption 60W (Panel Model Only) Dimensions (mm) 890 x 890 x 77.2 Weight (Net) 24kg Mounting VESA 400x200, 400x400 Operating Temperature 0 ˚C ~ 50 ˚C Storage Temperature -20 ˚C ~ 60 ˚C
