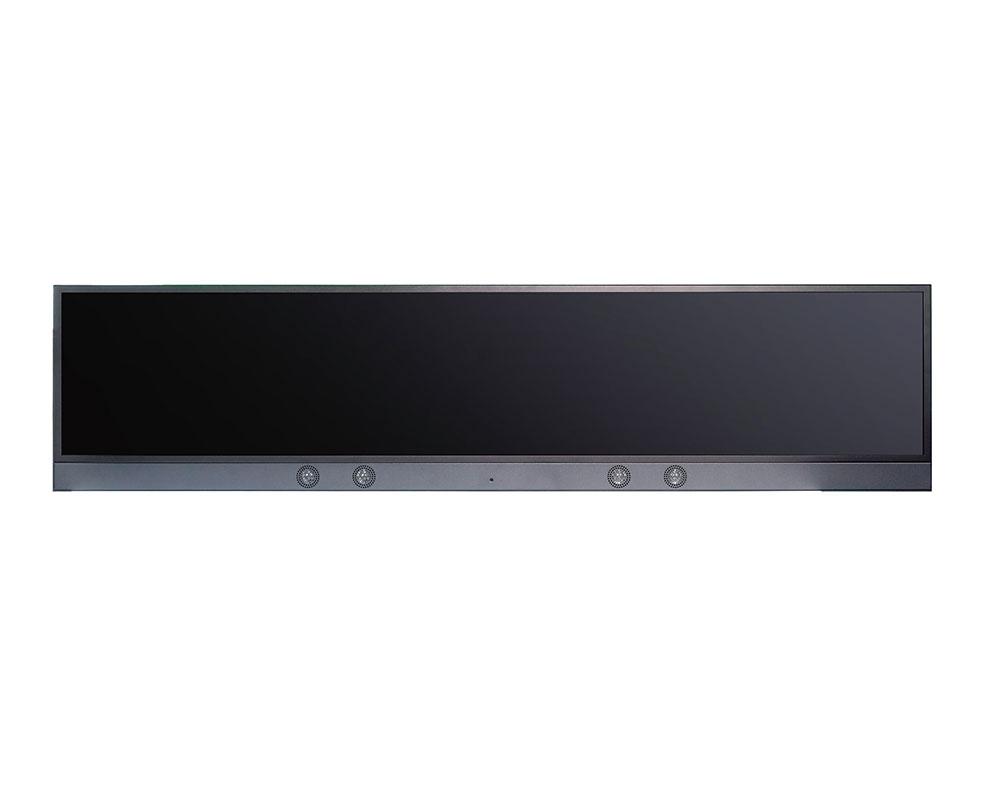

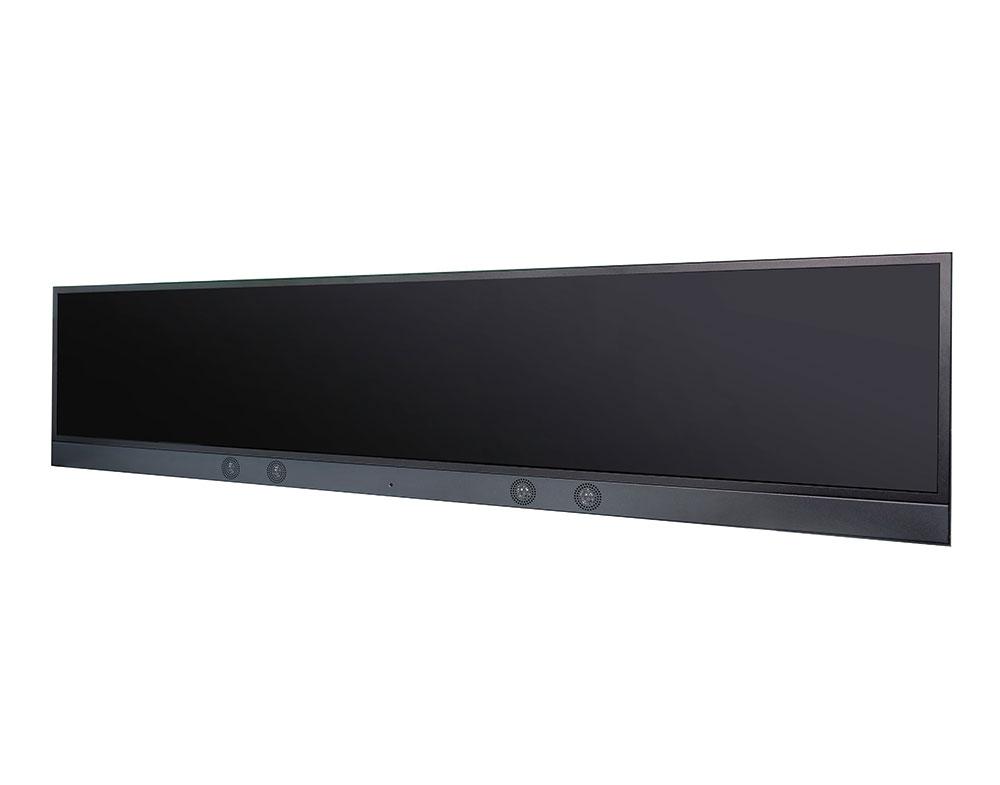

ISDM-4805
48” TFT LCD, LED Backlight 1000nits, UHD(3840x720)- Brightness: 1000nits
- LED Backlight
- Stretched display (aspect ratio of 16: 3)
- Low Power Consumption
- Slim Bezel
- Support Intel® SDM-S/SDM-L
- Built-in Speakers
- Wifi Support
-
Model Name ISDM-4805 Description 48” TFT LCD,1000nits, 3840x720 SDM Solutions Size 48” Display Area (mm) 1194.05(H) x 223.88(V) Brightness 1000 cd/m² Resolution 3840 x 720 Aspect Ratio 16:3 Contrast Ratio 1200:1 Pixel Pitch (mm) 0.31095(H) x 0.31095(V) Pixel Pre Inch (PPI) 81 Viewing Angle 178°(H),178°(V) Color Saturation (NTSC) 83% Display Colors 16.7M Response Time (Typical) 16ms SDM Slot SDM-S/SDM-L Input Power AC100~240V Power Consumption 106W (Panel Model Only) | 126W (w/SDM-L N3350) Dimensions (mm) 1220.3 x 289.7 x 62 Bezel Size(U/B/L/R) 12.5/ 50.2/12/12 mm Weight (Net) 12kg Mounting VESA 400x100, (M6 Screw) Operating Temperature 0 ˚C ~ 50 ˚C Storage Temperature -20 ˚C ~ 60 ˚C
