| Model name |
ISKM-CFL3-Q370 |
| Construction |
Metal |
| Standard color |
Black |
| CPU |
Intel® 8th Gen Core™ i7/i5/i3/Pentium®/ Celeron®(LGA1151) Processor(max. TDP 65W) |
| Chipset |
Intel® Q370 PCH |
| BIOS |
AMI SPI Flash ROM |
| System memory |
2 x 260-pin DDR4 2666MHz SDRAM; max. up to 32GB |
| Graphic |
Intel® HD Gen. 9-LP Graphics |
| Watchdog Timer |
Interval: Programmable 1 ~ 255 sec. Output: System reset |
| Expansion Slot |
2 x Mini-PCIe (1 w/uSIM) slots |

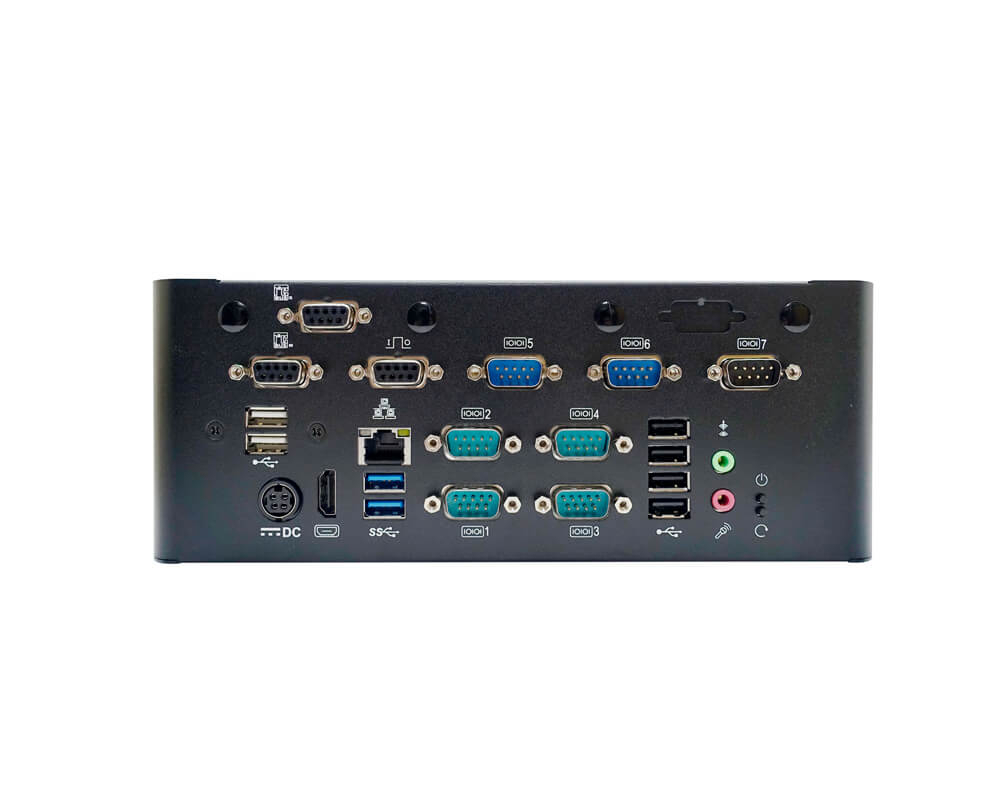

| System I/O |
|
| USB |
2 x USB 3.0, 2 x USB 3.1, 6 x USB 2.0 |
| COM |
7 x COM |
| LAN |
1 |
| Display |
1 x HDMI, 1 x DP |
| Audio |
Mic-in, Line-out |
| PS/2 |
N/A |
| Others |
2 x I2C, 1x GPIO |
| Storage Support |
|
| HDD |
1 x 2.5" HDD |
| CF |
N/A |
| CFast |
N/A |
| M.2 |
1 x M.2 M-key 2280(SSD) slot |
| System |
|
| Indicators |
1 x Power LED |
| Controls |
1 x Power on switch |
| Power |
|
| Power supply |
DC-IN Jack 12Vdc or 19Vdc~ 24Vdc |
| Environment |
|
| Opearting Temperature |
0°C ~ 40°C |
| Storage Temperature |
-20°C ~ 60°C |
| Relative Humidity |
0% ~ 90% (non-condensing) |
| Mechanical |
|
| Mounting |
Desktop/Wall mount |
| Weight |
2.9 kg |
| Dimensions (W)x(D)x(H)mm |
239mm(W) x 196mm(D) x 90mm(H) |
