| Display type |

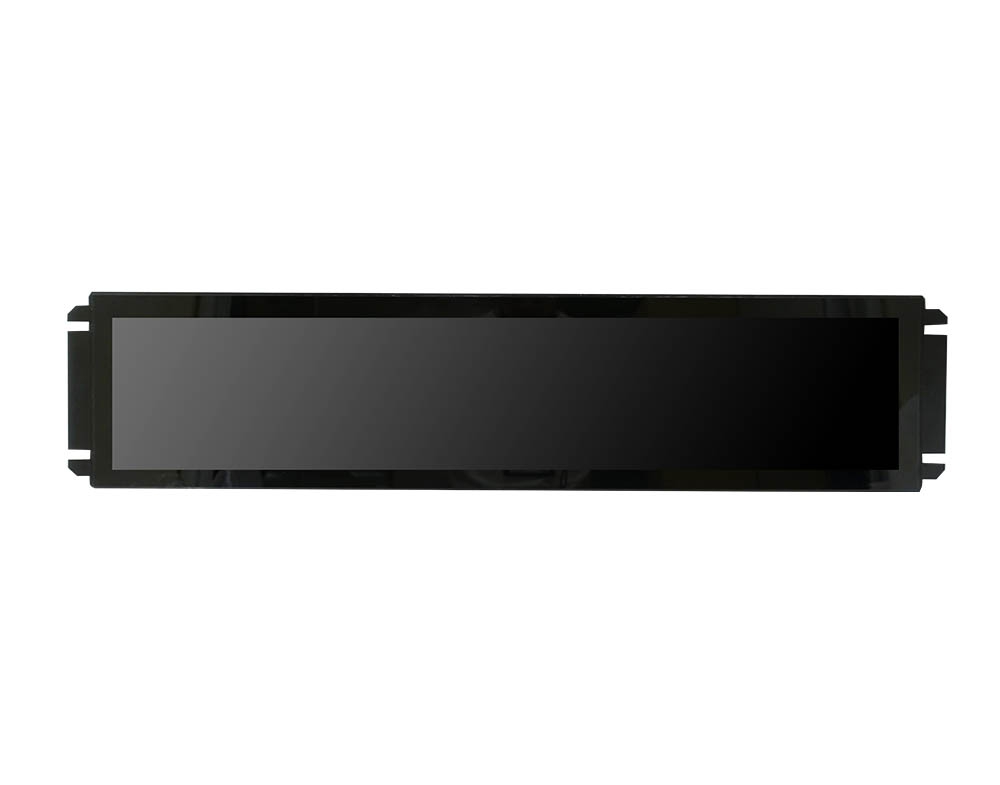

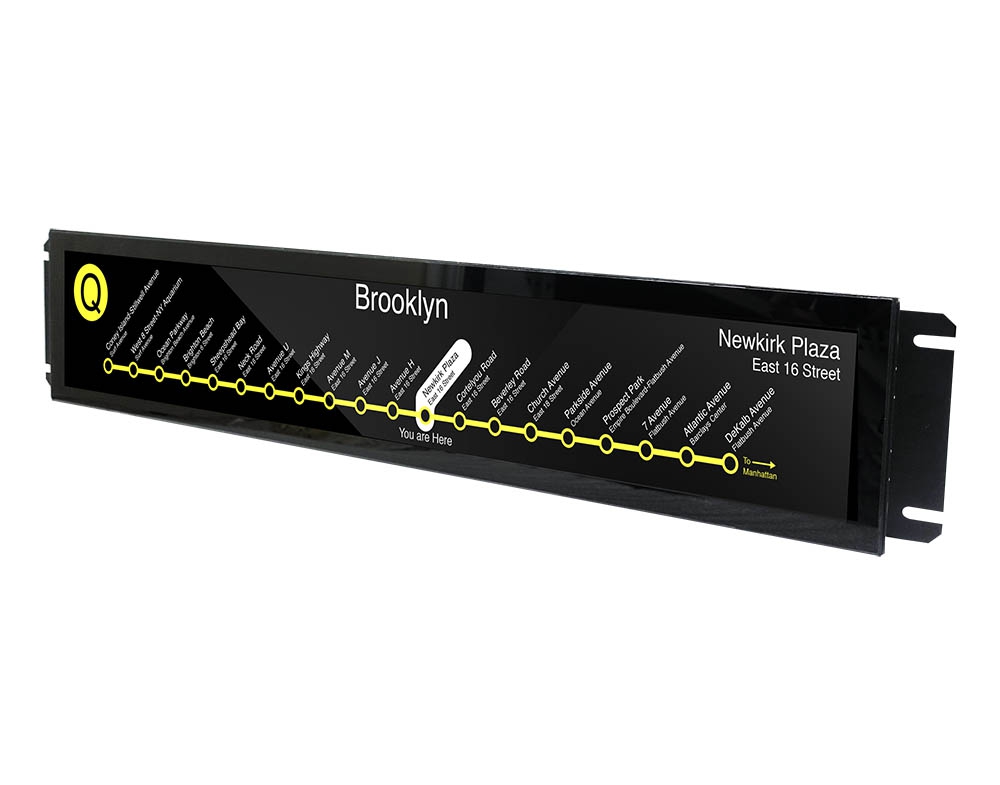

28" Resizing TFT LCD |
| Size |
28" |
| Resolution |
1920x357 |
| Brightness |
1000 nits |
| Color |
16.7M |
| Pixel pitch (H/V) |
0.3637mm x 0.3637mm |
| Contrast ratio |
6500:1 |
| Viewing angle (H/V) |
178°(H),178°(V) |
| Processor |
Intel® Core™ i7-6600U 2.6GHz dual coreprocessor (TDP 15W)
Intel® Core™ i5-6300U 2.4GHz dual coreprocessor (TDP 15W)
Intel® Core™ i3-6100U 2.3GHz dual coreprocessor (TDP 15W)
Intel® Celeron® 3955U 2.0GHz dual coreprocessor (TDP 15W) |
| Chipset |
Intel® Skylake-U integrated |
| Graphic |
Intel® HD Graphics 520/510 |
| Memory |
1 x 260-pin DDR4 2133MHz SDRAM; max. up to 16GB |
| System I/O |

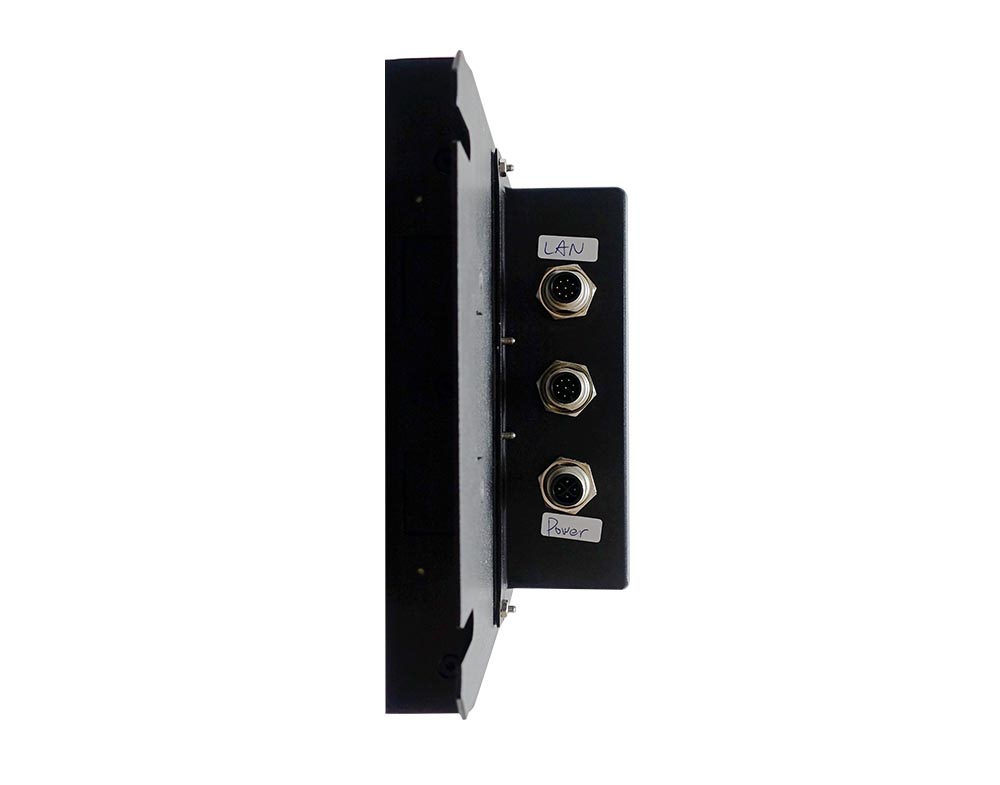

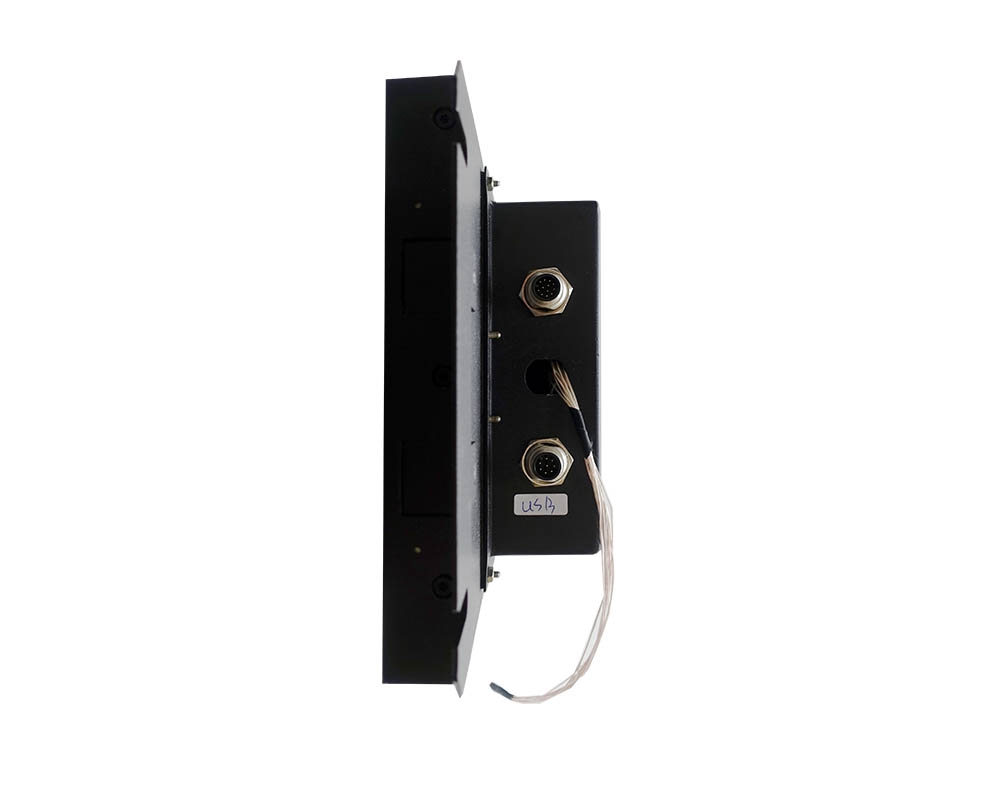

1 x COM ,1x HMDI, 2 x USB 2.0, 2 x LAN Connector Type: M12 |
| Ethernet |
2 x Gigabit Ethernet (1 x Intel® I210, 1 x Intel®I219LM) |
| Storage support |
1 x mSATA |
| Expansion slot |
1 x Mini-PCIe (Full size with SIM) ,1 x Mini-PCIe (Full size, share with mSATA) |
| System indicators |
N/A |
| System controls |
N/A |
| OS Support |
Win7, Win8.1, Win10, Linux |
| Power supply |
110 Vdc input, M12 connector (24/36/48/72/96 Vdc optional) |
| IP level |
Full IP65 |
| Operating temperature |
EN50155 T1 ; -25°C ~ 55°C |
| Storage temperature |
-40°C ~ 80°C |
| Vibration,Shock |
EN50155 |
| Relative humidity |
0% ~ 90% (non-condensing) |
| Dimensions |
815 mm(W) x 68.6 mm(D) x 78.1 mm(H) |
| Weight |
6.94 kg |
