| Model Name |
IPPS-1768-SKL2-WR00 |
| LCD |
|
| Display Type |
17" SXGA TFT LCD |
| Resolution |
1280 x 1024 |
| Brightness |
1600 cd/m² |
| LCD Color |
16.2M |
| Pixel Pitch (H/V) |
0.264(H) x 0.264(V) |
| Constrast Ratio |
1000:1 |
| Viewing Angle (H/V) |
170°/160°/(typ.) |
| Backlight MTBF (typ.) |
70,000 hrs |
| Touch Screen Type |
10-Point P-CAP touch screen |
| System |
|
| CPU |
Intel® Core™ i7-6600U 2.6GHz DC processor (TDP 15W)
Intel® Core™ i5-6300U 2.4GHz DC processor (TDP 15W)
Intel® Core™ i3-6100U 2.3GHz DC processor (TDP 15W)
Intel® Celeron® 3955U 2.0GHz DC processor (TDP 15W) |
| Chipset |
Intel®Skylake-U integrated |
| Memory |
1 x260-pin DDR4 2400MHz SDRAM; up to 16GB |
| Graphic |
Intel® HD Graphics 520/510 |
| Watchdog Timer |
Yes |
| Indicators |
N/A |
| Controls |
N/A |
| Expansion Slot |
1 x Mini-PCIe (Full size with SIM)
1 x Mini-PCIe (Full size, share with mSATA) |
| System I/O |
|
| USB |
2 x USB 2.0 (TypeA w/waterproof) |
| COM |
N/A |
| LAN |

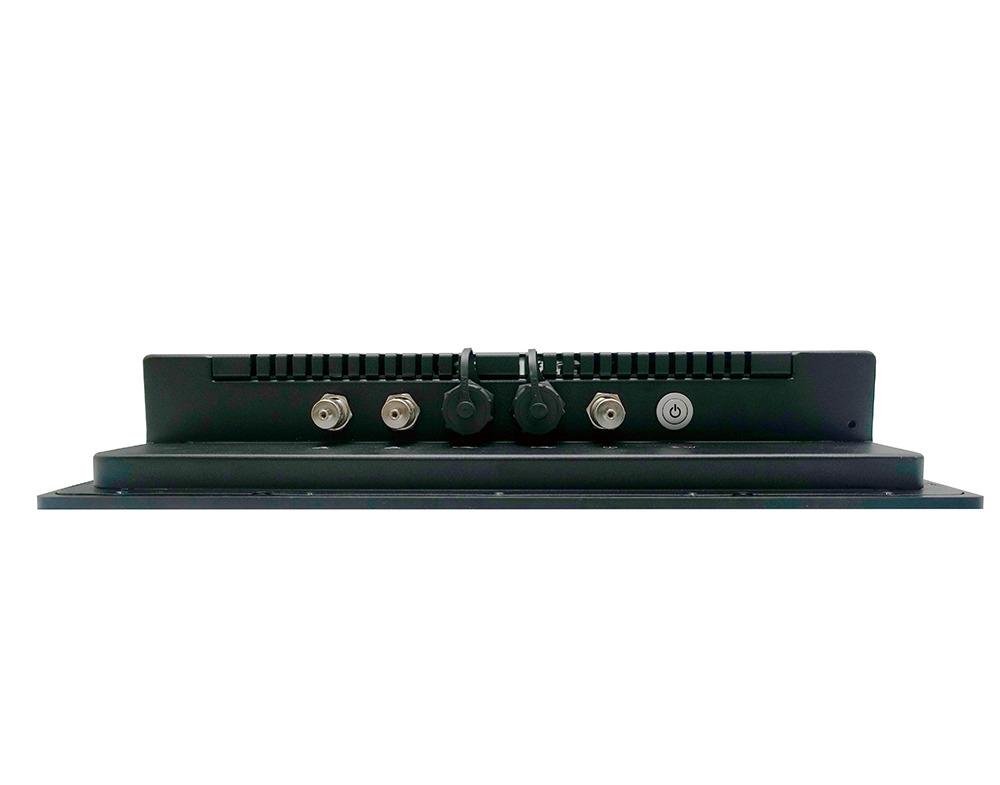

2 x LAN(M12) |
| Display |
N/A |
| Audio |
N/A |
| Storage Support |
|
| HDD |
1 |
| mSATA |
1 |
| Power |
|
| Power Supply |
DC 24~110V input, M12 connector |
| Environment |
|
| Opearting Temperature |
0°C ~ 50°C |
| Storage temperature |
-20°C ~ 80°C |
| Relative Humidity |
0% ~ 90% (non-condensing) |
| IP Level |
IP65 |
| Machanical |
|
| Standard Color |
Black |
| Dimensions |
392.2 mm(W) x 66.4 mm(D) x 324.6 mm(H) |
| Weight |
7.14 kg |
| Mounting |
VESA 100 x 100 |
